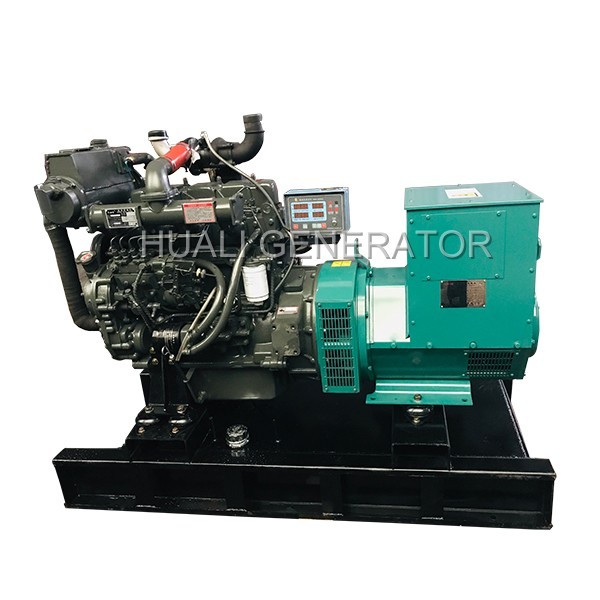

As a Chinese factory for 50KW marine generator sets, our units have the following characteristicsStandard scope of supply:
Engine with direct injection, water cooled engine, 4 cylinder, in-line, 4 stroke,
rated at 1500 RPM, conforming to ISO 3046 / BS 5514 has the following
specifications:
- Mechanical governor /Electronic Governor (Optional)
- Turbocharger, pulse tuned exhaust manifold,
- Radiator Cooled, turbo charged after cooled
- Dry type replaceable paper element air cleaner
- Flywheel housing and flywheel to suit single bearing alternator
- Starting motor – Electric, battery charging alternator
-brushless alternator
- Self-excited, self-regulated
- Class ‘H’ insulation limited to temperature rise of class H
- Single bearing
- Automatic voltage regulator
Generator set | Rated Frequency | 50HZ |
Power Factor | 0.8 | |
Rated Voltage | 400/230V | |
Rated Power(KW/KVA) | 50/62.5 | |
Standby Power(KW/KVA) | 55/68.75 | |
Phase/Wire | 3/4 | |
Diesel Engine | Origin | Weifang,China |
Engine Model | R4105ZCD | |
Rated Power(kw/r/min) | 56/1500 | |
Intake Type | Turbo charger | |
No. of Cylinder | 4 | |
Bore×Stroke(mm) | 105×125 | |
Compression Ratio | 16:1 | |
Exhaust Temperature(℃) | ≤600 | |
100%output Fuel Consumption(L/h) | ≤239 | |
Displacement(L) | 4.33 | |
Alernator | Rated Power(KW/KVA) | 50/62.5 |
Voltage Regulation | ≤±5 | |
Excitation Type | Brushless | |
Material | 100% Copper | |
Rated Frequency | 50HZ | |
Insulation Class | H |
