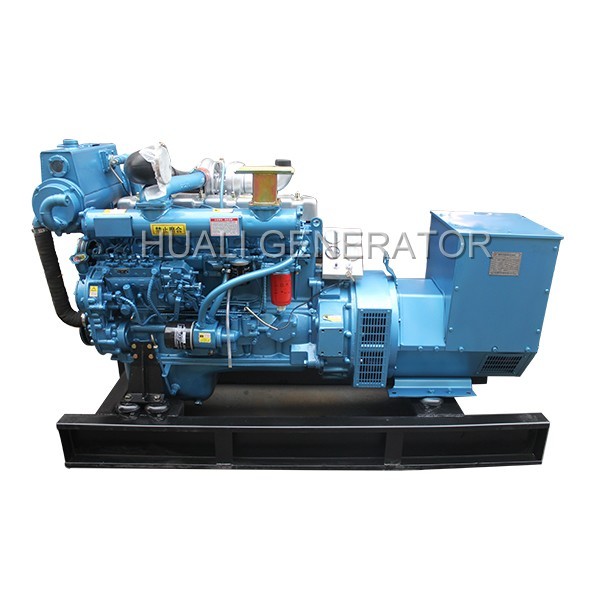

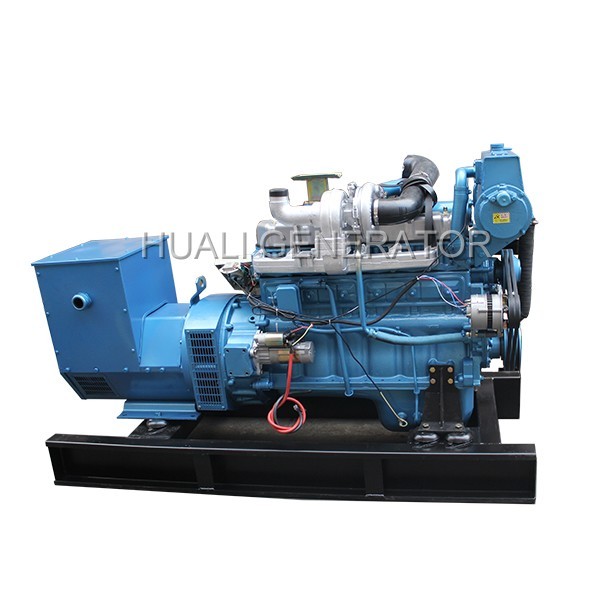

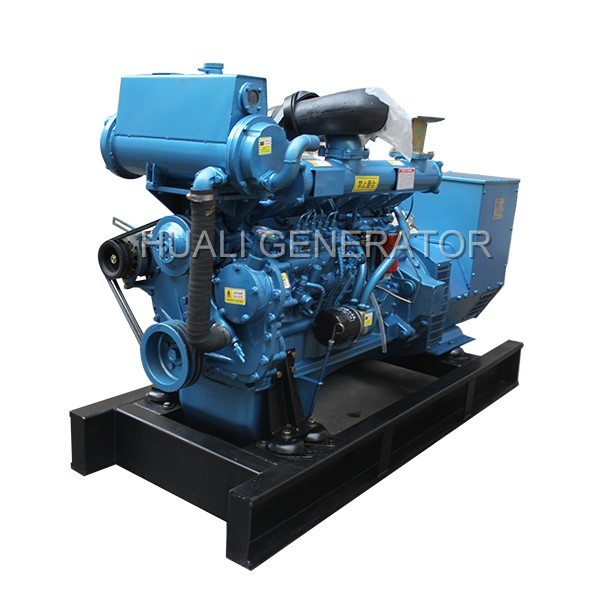

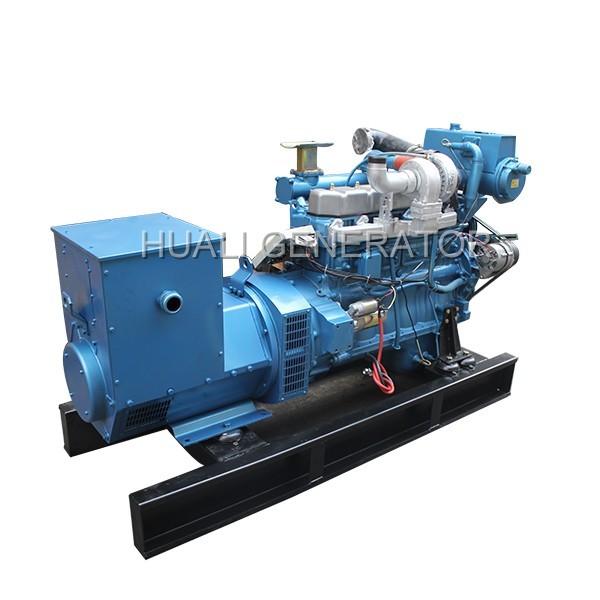

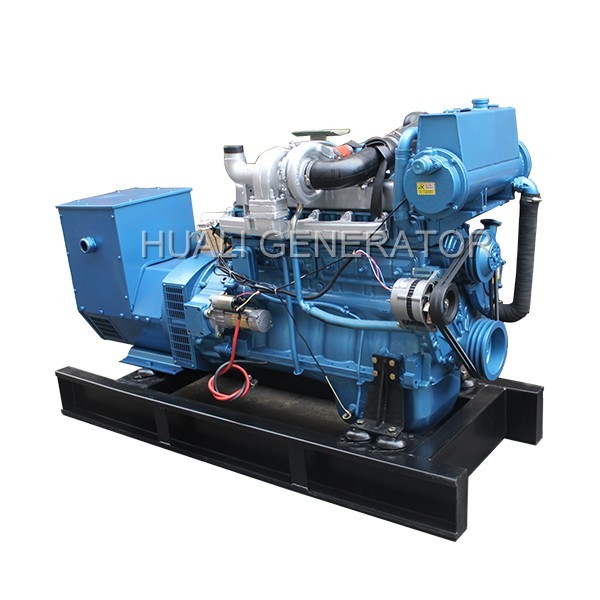

80kVA Marine generator set

Reliable power supply: The generator set can provide a stable and continuous power supply for the ship's electrical system, ensuring reliable operation of all onboard equipment.
Efficient operation: The generator set is designed to operate with high efficiency, reducing fuel consumption and operating costs.
Compact size: The 64KW marine generator set is designed to be compact and space-saving, which is especially important for ships where space is limited.
Easy maintenance: The generator set is designed to be easy to maintain and service, reducing downtime and maintenance costs.
High quality components: The generator set is built with high-quality components that are designed to withstand the harsh marine environment, ensuring long-term reliability and durability.
Low emissions: The generator set is designed to comply with strict marine emissions regulations, reducing the ship's environmental impact.
Customizable options: The 64KW marine generator set can be customized to meet the specific requirements of different ship types and applications.

      Diesel Generator

Genset Model

64GFJ

Rated Frequency

50HZ

Power Factor

0.8

Rated Voltage

400/230V

Rated Power(KW/KVA)

64/80

Standby Power(KW/KVA)

70.4/88

Phase/Wire

3/4

                       Diesel Engine

Engine Brand

Weifang,China

Engine Model

R6105ZCD

Speed regulation mode

Mechanical speed regulation

Rated Power(kw/r/min)

84/1500

Intake Type

Turbo charger

No. of Cylinder

6

Bore×Stroke(mm)

105×125

Compression Ratio

16:1

Exhaust Temperature(℃)

≤600

100%output Fuel Consumption(L/h)

≤231

Displacement(L)

6.49

Alernator

Rated Power(KW/KVA)

64/80

Voltage Regulation

≤±5

Excitation Type

brushless

Material

100% Copper

Rated Frequency

50HZ

Insulation Class

H
