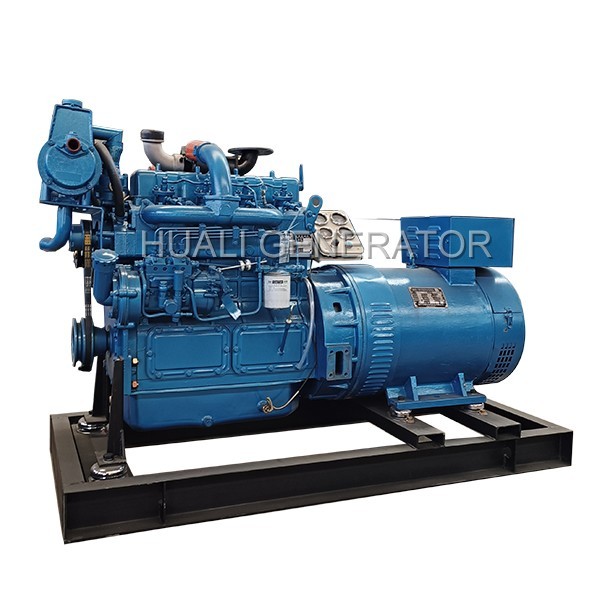

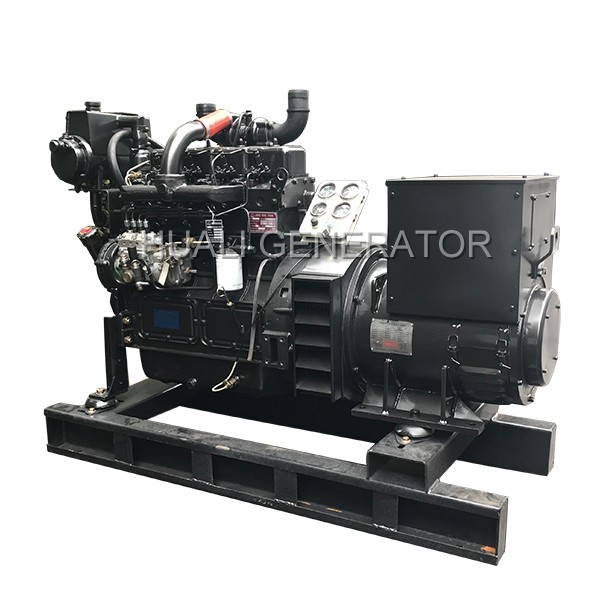

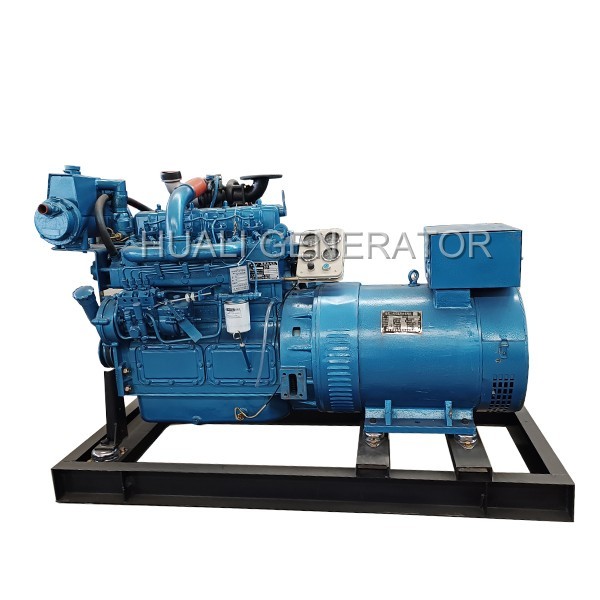

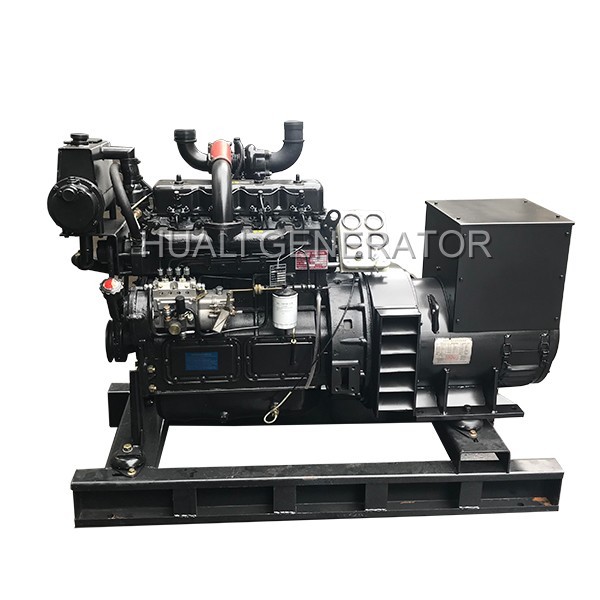

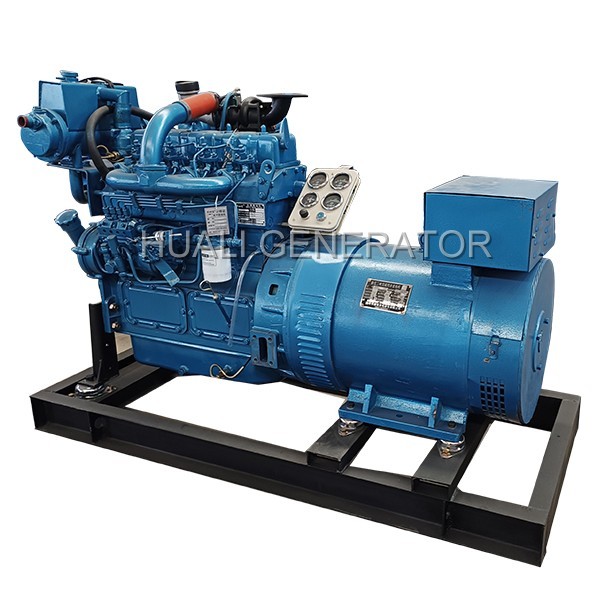

37.5kVA MARINE SHIP BOAT GENERATOR
Main Features
1)Easy operation,simple maintenance, Low cost.
2) Compact structure, high-strength chassis,beautiful design.
3) Good performance damping system, coperate more conveniently.
4) Compliance with international electrical safety standards of electrical system
5) continue running 8 hours base tank
6) High-performance maintenance-free batteries with isolation switch,it is more safety.
7) Forklift bottom hole design, easy to transport.
8) Industrial type muffler.
9) Noise reduction structure,Low overall noise.
10) Convenient power output interface and ATS Interface,satisfy customer's requires.
11)The personalized design for user
Diesel Generator | Genset Model | 30GFJ |
Rated Frequency | 50HZ | |
Power Factor | 0.8 | |
Rated Voltage | 400/230V | |
Rated Power(KW/KVA) | 30/37.5 | |
Standby Power(KW/KVA) | 33/41.25 | |
Phase/Wire | 3/4 | |
Diesel Engine | Place of origin | Weifang |
Engine Model | ZH4100ZCD | |
Rated Power(kw/r/min) | 41.2/1500 | |
Intake Type | Turbocharger | |
No. of Cylinder | 4.L | |
Bore×Stroke(mm) | 100×115 | |
Compression Ratio | 17：1 | |
度Exhaust Temperature(℃) | ≤540 | |
（g/kw.H) | ≤251.6 | |
Displacement(L) | 3.61 | |
Alternater | Rated Power(KW/KVA) | 30/37.5 |
Voltage Regulation | ≤±5 | |
Excitation Type | Brushless | |
Protection class | IP23 | |
Rated Frequency | 50HZ | |
Insulation Class | H |
