30kVA marine diesel generator For Floating Barge CCS class approval
Engine Features:
1. Marine diesel engine
2. 4-cylinder in-line or veer engine, 4-stroke, direct injection
3. Sea water cooled with heat exchanger
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily

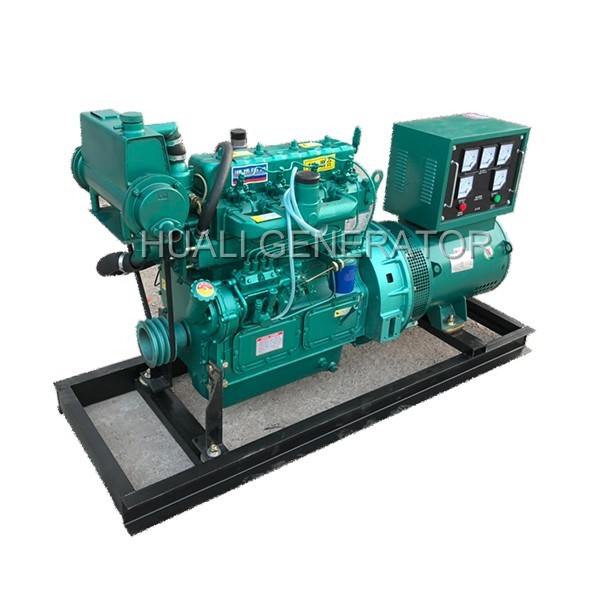

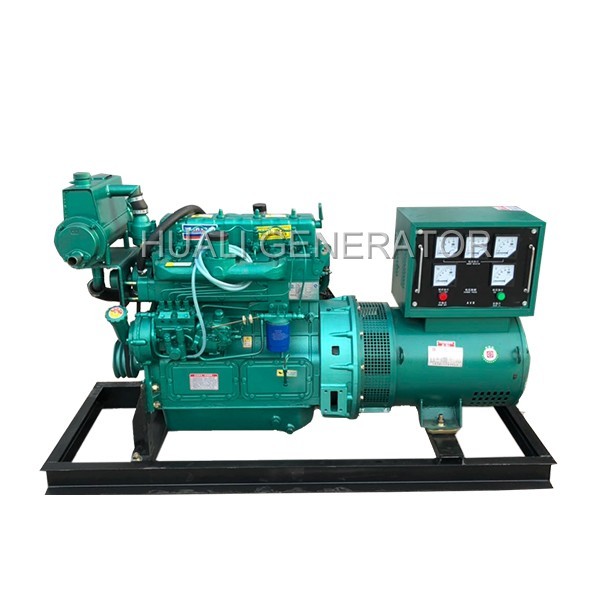

The 30kva marine diesel generator is equipped with Weifang engine and reliable brushless alternator .
The Marine Diesel Generator is widely used in inland and coastal waters, offshore market carriers, fishing boats, yatch,Ferry boat ,ships and other projects.
Diesel Generator | Genset Model | 30kVA |
Rated Frequency | 50HZ | |
Power Factor | 0.8 | |
Rated Voltage | 400/230V | |
Rated Power(KW/KVA) | 24/30 | |
Standby Power(KW/KVA) | 26.4/29.04 | |
Phase/Wire | 3相4线 | |
Diesel Engine | place of origin | Weifang |
Engine Model | 495CD | |
Rated Power(kw/r/min) | 26.5/1500 | |
Intake Type | Naturally | |
No. of Cylinder | 4 | |
Bore×Stroke(mm) | 95×115 | |
Compression Ratio | 17:1 | |
Exhaust Temperature(℃) | ≤470 | |
(g/kw.H) | ≤251.6 | |
Displacement(L) | 3.26 | |
Alternator | Rated Power(KW/KVA) | 24/30 |
Voltage Regulation | ≤±5 | |
Excitation Type | Brushless | |
Material | 100% copper | |
Rated Frequency | 50HZ | |
Insulation Class | H |
