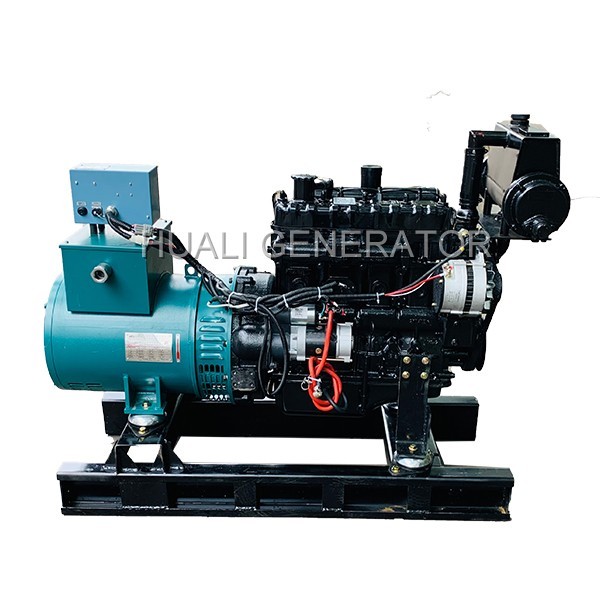

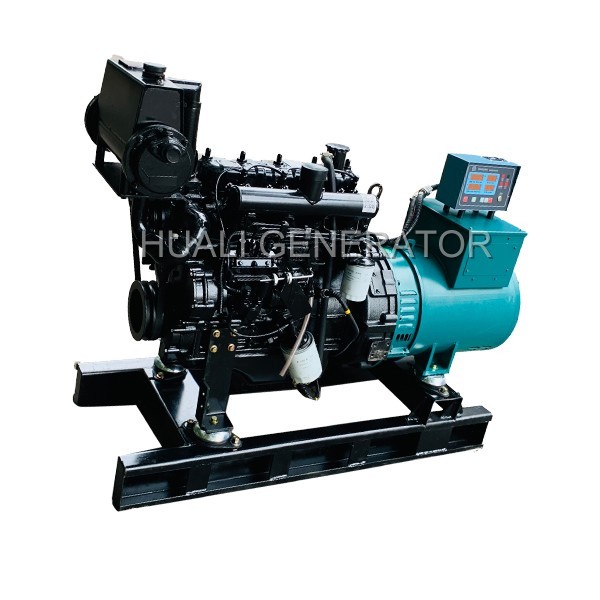

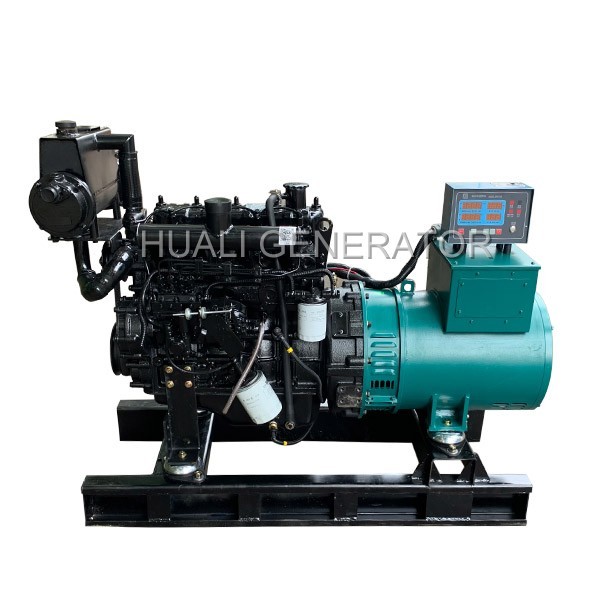

The advantages of small marine diesel generator
1) Running 7x24 hours as industrial power, or standby power.
2) New generation 26.5kw Ricardo diesel engine with reinforced parts , more reliable, longer lifetime.
3) USA Baldwin filters, starter with relay, charging alternator with AVR.
4) Mechanical governor, more steady speed, smaller harm to alternator produced by exciting current.
5) Brushless alternator, varnished 3 times, AVR, CHNT breaker, PMG, reduce current shock.
6) Smartgen 6110 controller, display all the parameters, provide protections.
7) Adopt Schneider breaker & Omron relay for small cabinet.
8) Stronger base steel frame with big volume fuel tank & high efficiency damper.
9) With standard accessories like free-maintenance battery(cables&switch),tool case,free parts ect.
Diesel generator set data | ||||
Model | HD16GF | Start method | Electric starter | |
Unit power (KW/KVA) | 16/20 | Rated output current (A) | 28.8 | |
Standby power (KW/KVA) | 17.6/22 | Output voltage (V) | 400/230 | |
Power factor | 0.8 | Wiring | Three-phase four-wire | |
Frequency | 50HZ/60HZ | Unit weight (Kg) | 550 | |
Unit size(mm) | long | Width | high | |
1600 | 650 | 1300 | ||
Diesel data | ||||
Manufacturer | Weifang | model | ZH495CD | |
Rated speed (rpm) | 1500/1800 | Rated power (KW) | 26.5/30 | |
number of cylinders | 4 | Type | 4 cylinders, inline, direct injection | |
Bore*stroke (mm) | 95*115 | Displacement volume (L) | 3.26 | |
Intake method | inhale naturally | Compression ratio | 19:01 | |
Fuel oil | China 0# light diesel oil | Fuel consumption | ≤258.4g/KW.h | |
Starting method | 24V electric starter | Cooling method | Water cooling | |
Alternator | ||||
model | SB-HW4.D-16 | Power (KW) | 16KW/20KVA | |
voltage (v) | 400 | Current (A) | 28.9 | |
Insulation class | H/H | degree of protection | IP223 | |
Voltage adjustment rate (%) | ±2.5 | Connection | Y | |
Phase | 3 | number of poles | 4 | |
